Preliminary ProceduresPlace the window in the up down position.Remove front door trim panel. Refer toFront Side Door Trim Panel Replacement.Remove the front side door garnish molding. Refer toFront Side Door Garnish Molding Replacement.Remove the front side door inner sealing strip. Refer toFront Side Door Window Inner Sealing Strip Replacement. | |

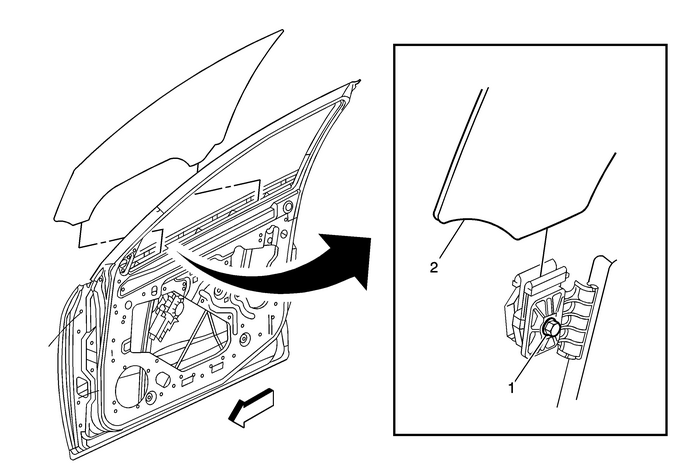

1 | Front Side Door Window Regulator Guide Nuts to Window(Qty:-2) Warning:Refer toGlass and Sheet Metal Handling Warning. Caution:Refer toFastener Caution. ProcedurePull the front side door window weatherstrip from thechannel.Apply masking tape to the applique to protect thefinish.Remove the front side door water deflector.Position the window in the full up to access the front sidedoor window regulator guide nuts.Tape the window in place, before remove lower the windowregulator.Tighten11-Y(97-lb-in) |
2 | Front Side Door Window ProcedureRemove the tape from the window.Install the window to left and right side of the channelbefore operating the window.Inspect the operation of the window before installing thedoor trim panel. |
