Radio Antenna Cable Extension Radio End Cable Replacement Entertainment Audio

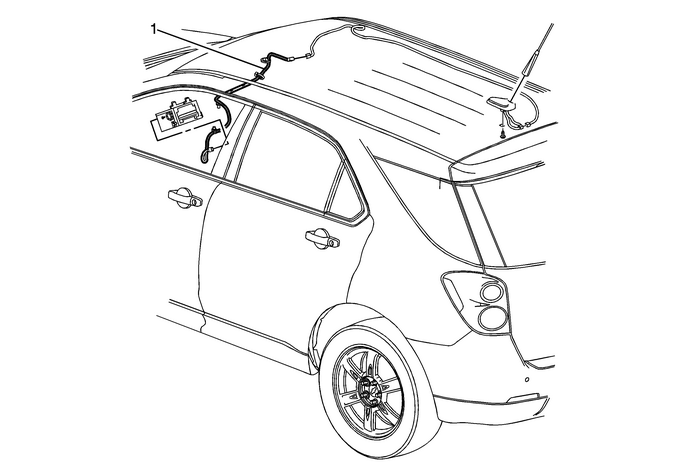

Radio Antenna Cable Extension Radio End Cable Replacement

Callout

Component Name

Preliminary Procedure

Lower the headlining trim panel where needed. Refer toHeadlining Trim Panel Replacement.

Radio Antenna Cable Extension Radio End Cable

ProcedureDisconnect the electrical connectors at each end of theantenna.If the antenna cable is taped into the wiring harness thencut the ends off the old antenna and route the new antenna as closeto the old one as possible using tie straps to secure the newcable.

Radio Antenna Cable Extension Cable Replacement Entertainment

Radio Antenna Cable Extension Cable ReplacementCalloutComponent NamePreliminary ProcedureLower the headlining trim panel where needed. Refer toHeadlining Trim Panel Replacement.1Radio Antenna Cable Ex ...

Radio Antenna Replacement Entertainment

Radio Antenna ReplacementCalloutComponent Name1Radio AntennaProcedureRotate the mast counterclockwise in order to release the mastfrom the antenna base. ...
