Chevrolet Equinox Service Manual: Special Tools TPMS

Chevrolet Equinox Service Manual / Chassis / Wheels/Tires / Special Tools TPMS

Illustration

Tool Number/Description

Special Tools TPMS

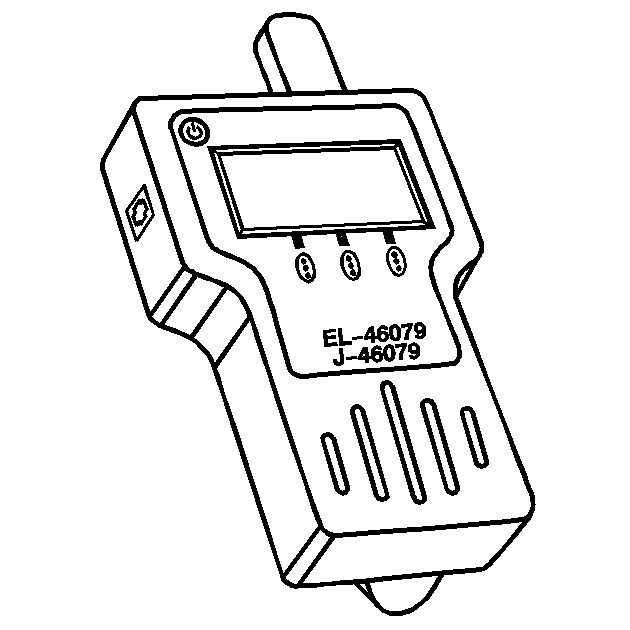

EL-46079

Tire Pressure Monitor Diagnostic Tool

Special Tools TPMS

el50448oec-t5

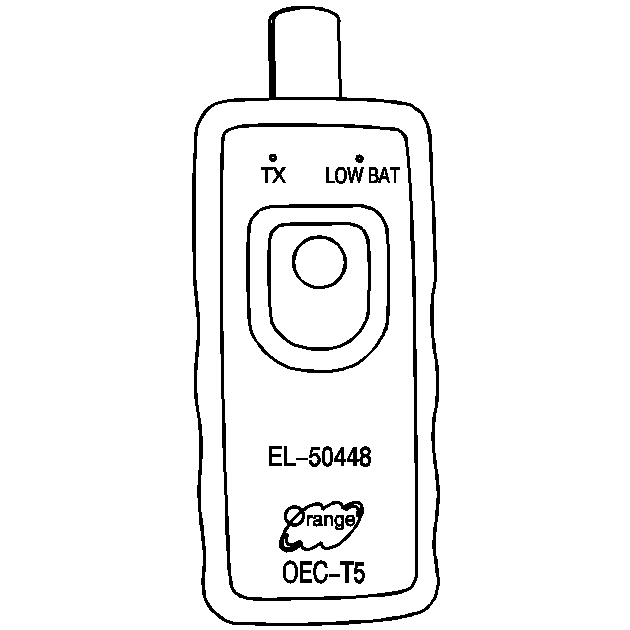

EL-50448

Tire Pressure Monitor Sensor Activation Tool
