Removal ProcedureRemove the accessory wiring junction block. Refer toAccessory Wiring Junction Block Replacement.Disconnect the brake fluid level indicator switch electricalconnector.

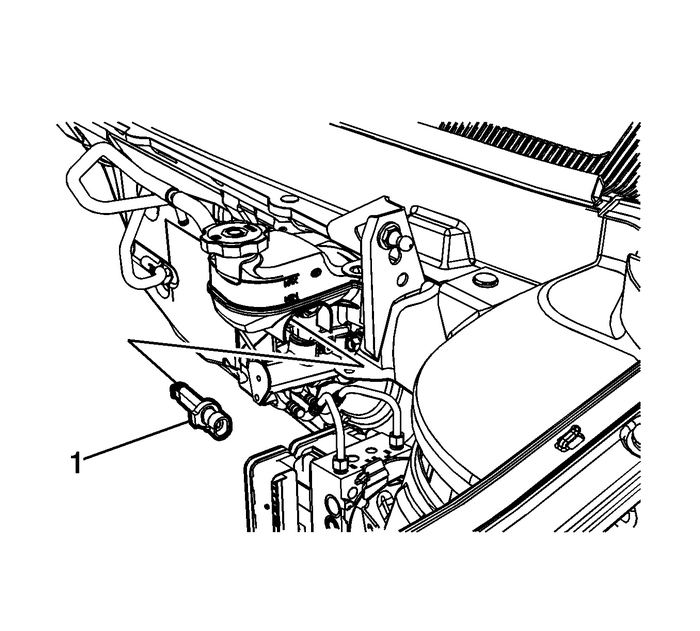

While compressing the retaining tabs on the inboard side ofthe brake fluid level indicator switch-(1), carefullyremove the switch from the brake master cylinder reservoir.Installation Procedure
Note:Ensure the retaining tabs on the brake fluid level indicatorswitch are fully engaged in the master cylinder reservoir.
Install the brake fluid level indicatorswitch-(1)-by carefully inserting the switchinto the master cylinder reservoir.Connect the brake fluid level indicator switch electricalconnector.Install the accessory wiring junction block. Refer toAccessory Wiring Junction Block Replacement.Propeller Shaft Phasing Inspection Driveshafts Propeller Shaft Assembly
