Front Differential Carrier Installation (6T40/45/50) Automatic Transmission Unit

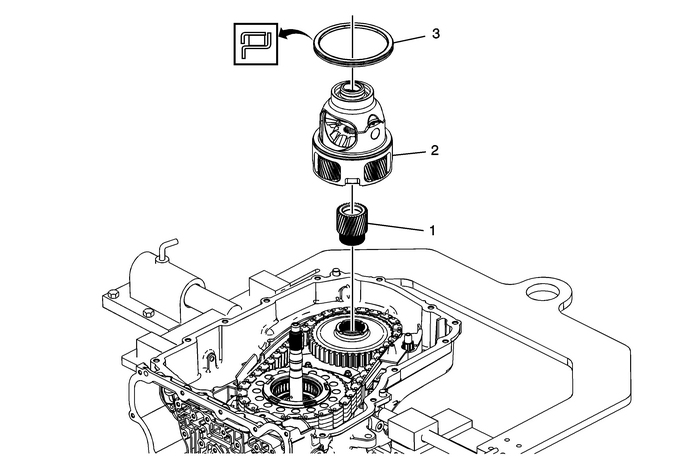

Front Differential Carrier Installation

Callout

Component Name

1

Final Drive Sun Gear

2

Differential Carrier Assembly

3

Front Differential Carrier Bearing Asembly

Front Differential Carrier Final Rotational Torque Measurement Automatic Transmission Unit
Front Differential Carrier Final Rotational Torque MeasurementCalloutComponent Name1Front Differential Carrier AssemblyCaution:Low bearing pre-load will cause premature failureof the front differentia ...

Front Differential Carrier Preliminary Rotational Torque Measurement Automatic Transmission Unit
Front Differential Carrier Preliminary Rotational Torque MeasurementCalloutComponent Name1Front Differential Carrier AssemblyCaution:Low bearing pre-load will cause premature failureof the front diffe ...
