Front End Inflatable Restraint Discriminating Sensor Replacement Restraints Control

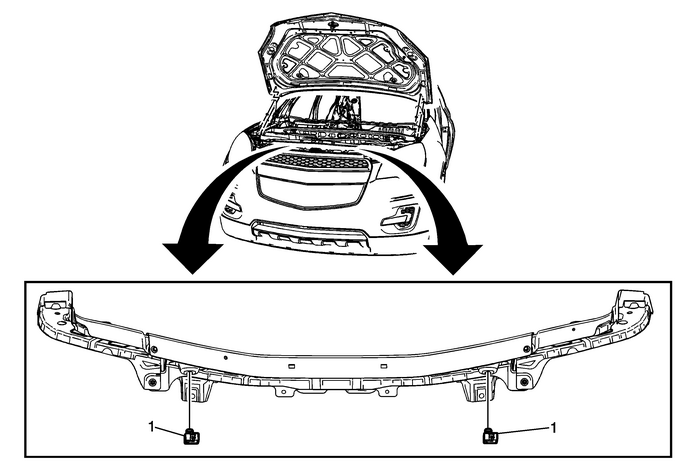

Front End Inflatable Restraint Discriminating Sensor Replacement

Callout

Component Name

Warning:Refer toSIR Warning.

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system.Refer toSIR Disabling and Enabling.

1

Front End Inflatable Restraint Discriminating SensorAssembly

Caution:Refer toFastener Caution.

ProcedureLoosen the bolts and slide the sensor out of the keyholeslots.The bolts are integral to the sensor assembly and DO NOTremove separately.Disconnect the electrical connector.Tighten

7.5-Y(66-lb-in)
