Front Side Door Auxiliary Weatherstrip Replacement Weatherstripping

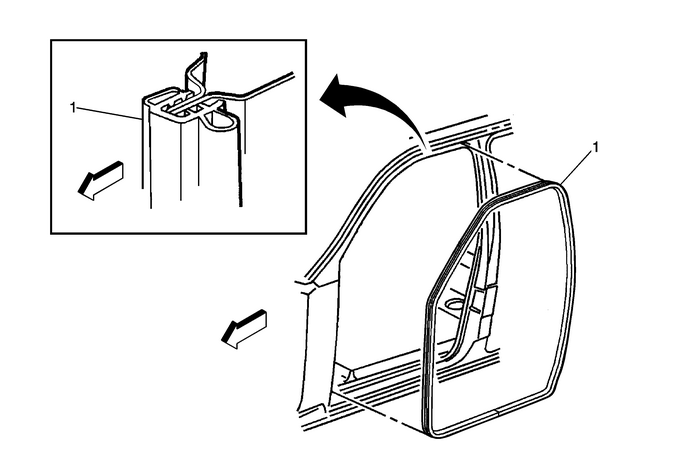

Front Side Door Auxiliary Weatherstrip Replacement

Callout

Component Name

Preliminary Procedure

Remove the body hinge pillar trim panel. Refer toBody Hinge Pillar Trim Panel Replacement.

1

Front Side Door Auxiliary Weatherstrip

ProceduresReposition trim panels if necessary to allow the weatherstripto be removed.Align the weatherstrip to the door opening with the bondjoint positioned at the lower center of the door opening.Install the weatherstrip to the pinch-weld flange. Ensure theweatherstrip is fully seated.
