Front Side Door Window Inner Sealing Strip Replacement Doors

Front Side Door Window Inner Sealing Strip Replacement

Callout

Component Name

Preliminary Procedures

Remove front door trim panel. Refer toFront Side Door Trim Panel Replacement.

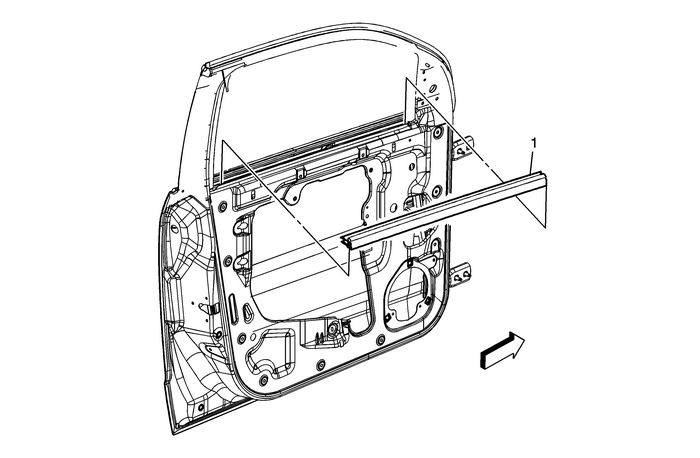

1

Front Side Door Inner Window Sealing Strip

ProcedureStart from the front edge of the door, pull upward on theinner window sealing strip to release it from the pinch-weldflange.Install the inner window sealing strip to the front edge ofthe door, press firmly onto the pinch-weld flange and work itrearward.Inspect the operation of the window before installing thedoor trim panel.
