Front Upper Grille Replacement Front Grille

Front Upper Grille Replacement

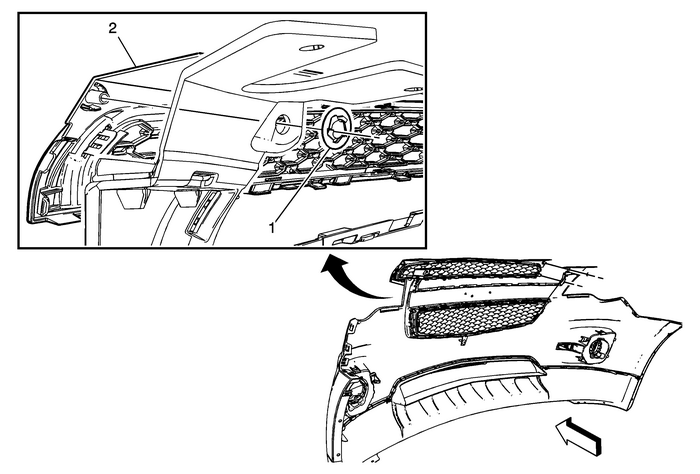

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer toFront Bumper Fascia Replacement.

1

Push On Nut (Qty:-2)

Tip:Replace the push on nut to secure the grille assembly to thefront upper bumper fascia.

2

Radiator Upper Grille Assembly

Procedure

Release the radiator upper grille tabs from the upper bumperfascia and push outward in order to remove.
