Heater and Air Conditioning Control Replacement (Terrain)

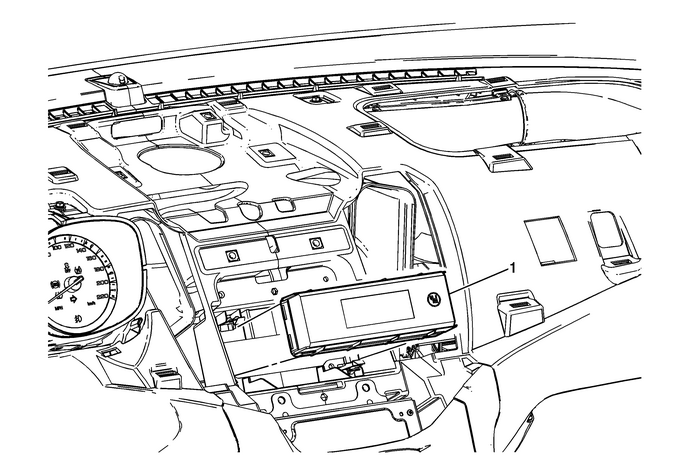

Heater and Air Conditioning Control Replacement

Callout

Component Name

Preliminary Procedures

Remove the instrument panel upper trim . Refer toInstrument Panel Upper Trim Panel Replacement.

Heater and Air Condition Remote Control

ProcedureDisconnect the heater and air conditioning control harness connector.Program the heater and air conditioning remote control. Refer toControl Module References.

Heater and Air Conditioning Control Replacement

Heater and Air Conditioning Control ReplacementCalloutComponent NamePreliminary ProceduresRemove the instrument panel upper trim . Refer toInstrument Panel Upper Trim Panel Replacement.1Heater and Air ...

Heating, Ventilation and Air Conditioning Control Module Scan Tool Information

Table 1: Heating Ventilation and Air Conditioning Control Module Scan Tool Data ParametersTable 2: Heating Ventilation and Air Conditioning Control Module Scan Tool Output ControlsHeating Ventilation ...
