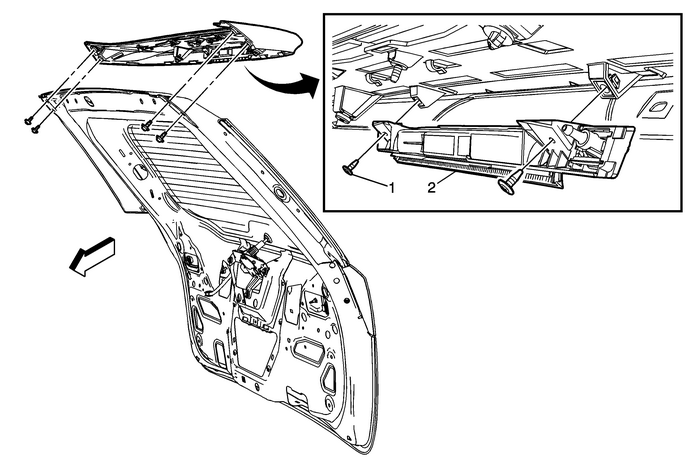

High Mount Stop Lamp Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear end spoiler assembly. Refer toRear End Spoiler Replacement

High Mount Stop Lamp Screw (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

High Mount Stop Lamp Assembly

ProcedureThe high mount stop lamp is (LED) light emitting diode and isreplaced as an assembly.Remove and transfer the rear window washer nozzle to the newhigh mount stop lamp.
