Hood Hinge Replacement Panels

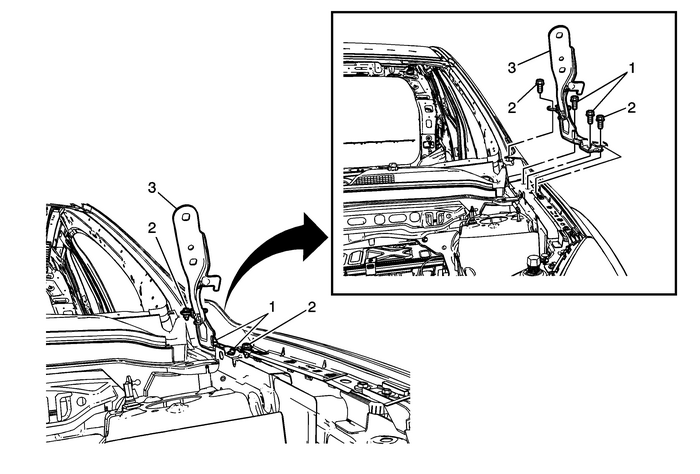

Hood Hinge Replacement

Callout

Component Name

Preliminary ProceduresRemove the front bumper fascia opening cover. Refer toFront Bumper Fascia Opening Cover Replacement.Remove the hood. Refer toHood Replacement.Reposition the end of the hood rear weatherstrip. Refer toHood Rear Weatherstrip Replacement.Remove the air inlet grille panel extension. Refer toAir Inlet Grille Panel Extension Replacement.

1

Hood Hinge Bolt (Qty:-2)

Caution:Refer toFastener Caution.

Procedure

Mark the location of the hinge to the hood and upper railwith a grease pencil to aid in alignment.

Tighten

25-Y(18-lb-ft)

2

Fender Bolt (Qty:-2)

Tighten

10-Y(89-lb-in)

3

Hood Hinge

Hood Front Seal Replacement Weatherstripping
