Luggage Carrier Side Rail Replacement

Luggage Carrier Side Rail Replacement

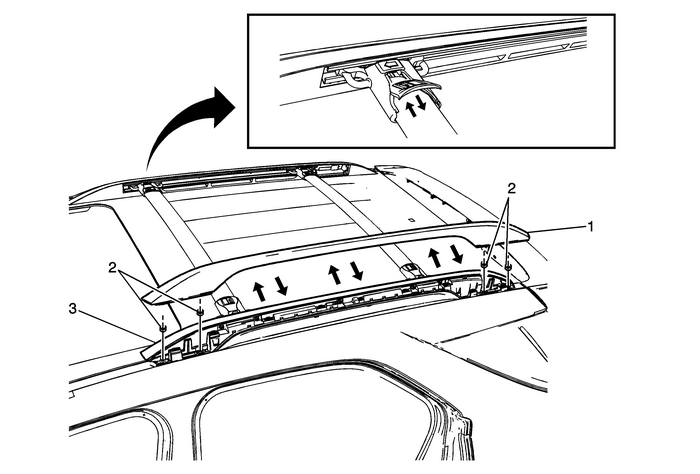

Callout

Component Name

1

Luggage Carrier Rail Bolt Cover

Tip:Start at the front edge of the cover, using a suitable toollift upward releasing it from the rail.

2

Luggage Carrier Rail Fastener (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

3

Luggage Carrier Rail

Roof Accessories
...

Storage
...
