Chevrolet Equinox Service Manual: Rear Floor Air Outlet Replacement

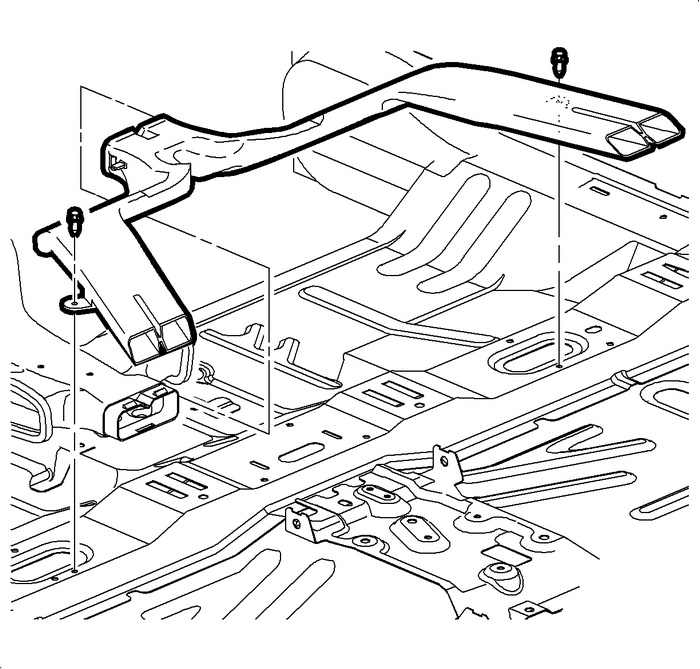

Removal Procedure
Remove the front seats. Refer toDriver or Passenger Seat Removal and Installation.Remove the floor console. Refer toFront Floor Console Replacement.Partially remove the floor carpet from the front footwells tothe B-pillars. Refer toFront Floor Panel Carpet Replacement.Remove the rear floor air outlet push pins from the floorpan.Remove the rear floor air outlet from the floor pan.Installation Procedure
Install the rear floor air outlet to the floor pan.Install the rear floor air outlet push pins to the floorpan.Install the floor carpet to the B-pillars and the frontfootwells . Refer toFront Floor Panel Carpet ReplacementInstall the floor console. Refer toFront Floor Console Replacement.Install the front seats. Refer toDriver or Passenger Seat Removal and Installation.
Floor Air Outlet Replacement - Center
Removal ProcedureRemove the front floor console. Refer toFront Floor Console Replacement.Slide the center floor air outlet duct forward enough toclear the rear floor air outlet duct, and then up, and ...
Air Conditioning (A/C) Evaporator Case Assembly Replacement Evaporator
Removal ProcedureRemove the HVAC module. Refer toHeater and Air Conditioning Evaporator and Blower Module Removal and Installation.Remove the heater core cover screws from the evaporator caseassembly. ...
