Chevrolet Equinox Owners Manual: Reclining Seatbacks
| Warning
Sitting in a reclined position when
the vehicle is in motion can be
dangerous. Even when buckled
up, the seat belts cannot do
their job. The shoulder belt will not be
against your body. Instead, it will
be in front of you. In a crash, you
could go into it, receiving neck or
other injuries.
The lap belt could go up over
your abdomen. The belt forces
would be there, not at your pelvic
bones. This could cause serious
internal injuries.
For proper protection when the
vehicle is in motion, have the
seatback upright. Then sit well
back in the seat and wear the
seat belt properly. |
Do not have a seatback reclined if the vehicle is moving.
Manual Reclining Seatbacks
| Warning
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there. Always push and pull on the seatbacks to be sure they are locked. |

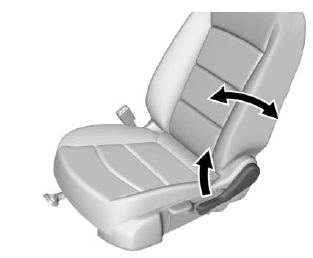

To recline a manual seatback:
- Lift the lever.
- Move the seatback to the desired position, and then release the lever to lock the seatback in place.
- Push and pull on the seatback to make sure it is locked.
To return the seatback to the upright position:
- Lift the lever fully without applying pressure to the seatback, and the seatback will return to the upright position.
- Push and pull on the seatback to make sure it is locked.
Power Reclining Seatbacks

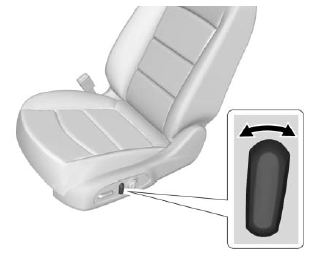

To adjust a power seatback, if available:
- Tilt the top of the control rearward to recline.
- Tilt the top of the control forward to raise.
Lumbar Adjustment
If equipped, press and hold the front
or rear of the control to increase or
decrease lumbar support. ...
Memory Seats
If equipped, memory seats allow two
drivers to store and recall their
unique seat positions for driving the
vehicle, and a shared exit position
for getting out of the vehicle. Other
feature p ...
