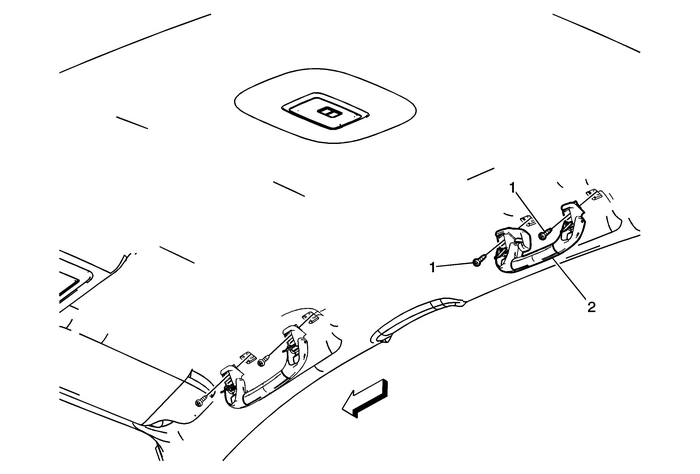

1 | Roof Rail Rear Assist Handle Fastener(Qty:-2) Caution:Refer toFastener Caution. ProcedureFold the assist handle downward and hold.Use a small flat-bladed tool to open the assist handle coversto access the screws.Tighten6-Y-(53-lb-in) |
2 | Roof Rail Rear Assist Handle |
