Turn Signal Multifunction Switch Replacement Lighting Exterior Lighting Turn Signal and Hazard Lamps

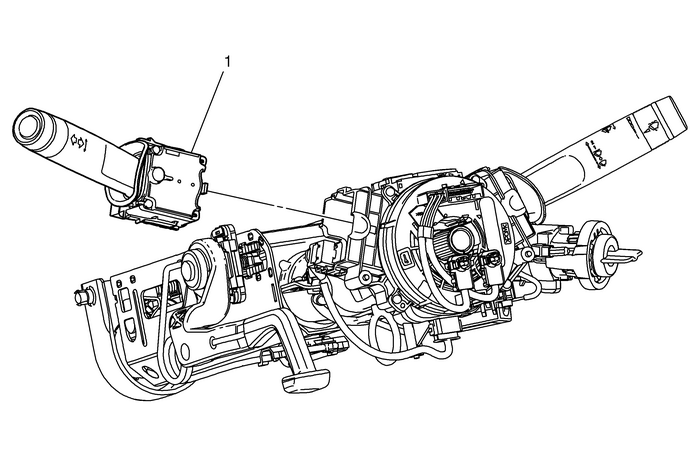

Turn Signal Multifunction Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the steering column shroud. Refer toSteering Column Shroud Replacement.

1

Turn Signal Multifunction Switch

ProcedureDisconnect any electrical connectors.Depress the locking tabs to remove the turn signalmultifunction switch.
