Windshield Washer Nozzle Replacement

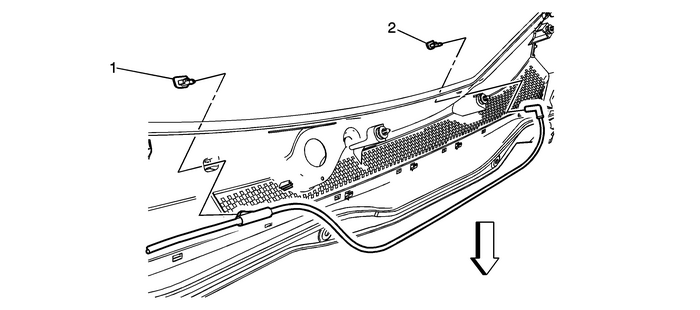

Callout

Component Name

Preliminary Procedure

Remove the air inlet screen. Refer toAir Inlet Screen Replacement.

1

Windshield Washer Nozzle-Driver Side

ProcedureDisengage the windshield washer nozzle hose connection at thedriver side washer nozzle.Pinch the tabs on the underside of the washer nozzle and pushthe nozzle outward, from the air inlet screen.

2

Windshield Washer Nozzle-Passenger Side

ProcedureDisengage the windshield washer nozzle hose connection at thepassenger washer nozzle.Pinch the tabs on the underside of the washer nozzle and pushthe nozzle outward, from the air inlet screen.
