Camshaft Position Actuator Solenoid Valve Replacement Valvetrain Camshaft

Camshaft Position Actuator Solenoid Valve Replacement

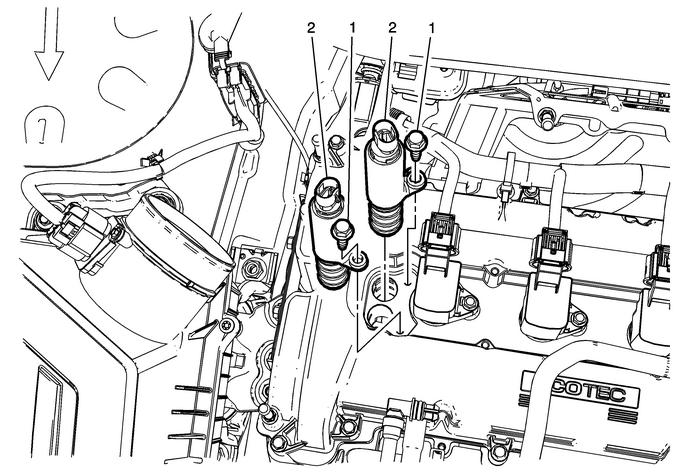

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement

Fastener (Qty: 2)

Caution:Refer toFastener Caution

Tighten

10-Y(89-lb-in)

Camshaft Position Actuator Solenoid Valve Replacement

ProcedureDisconnect the camshaft position actuator solenoid valveharness connector.Clean the cylinder head mating surfaces beforeassembly.Lubricate the camshaft position actuator solenoid valveO-ring seals with clean engine oil.

Tip:Replace only the Intake or exhaust camshaft position actuatorsolenoid as necessary.
