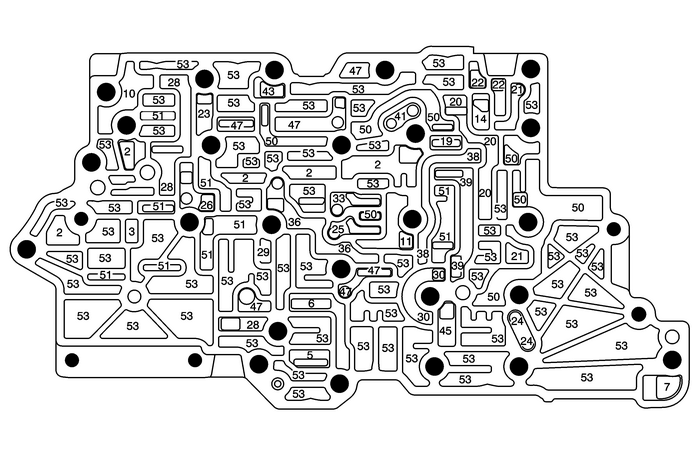

Control Valve Upper Body Assembly– Lower Body Spacer Plate Side
(2) | Line |
(3) | Decrease |
(5) | TCC Release |
(6) | TCC Apply |
(7) | Cooler Feed |
(10) | Compensator Feed |
(11) | Actuator Feed Limit |
(14) | PCS R1/456 Clutch |
(19) | R1/456 Clutch Feed |
(20) | R1/456 Feedback |
(21) | R1 Supply |
(22) | R1 |
(23) | PCS 35 Reverse Clutch |
(24) | Reverse |
(25) | 35 Reverse Clutch Feed |
(26) | 35 Reverse Supply |
(28) | 35 Reverse Clutch |
(29) | 35 Reverse Clutch Feedback |
(30) | PCS 1234 Clutch |
(33) | Drive B |
(36) | 1234 Clutch Feed |
(38) | 1234 Clutch Feedback |
(39) | Drive 1–6 |
(41) | CSV2 Latch |
(43) | 26 Clutch |
(45) | 1234 Clutch Default |
(47) | 456 Clutch |
(50) | Exhaust Backfill |
(51) | Exhaust |
(53) | Void |
