Crankshaft Sprocket Removal Engine Block Cylinder Block Crankshaft Sprocket

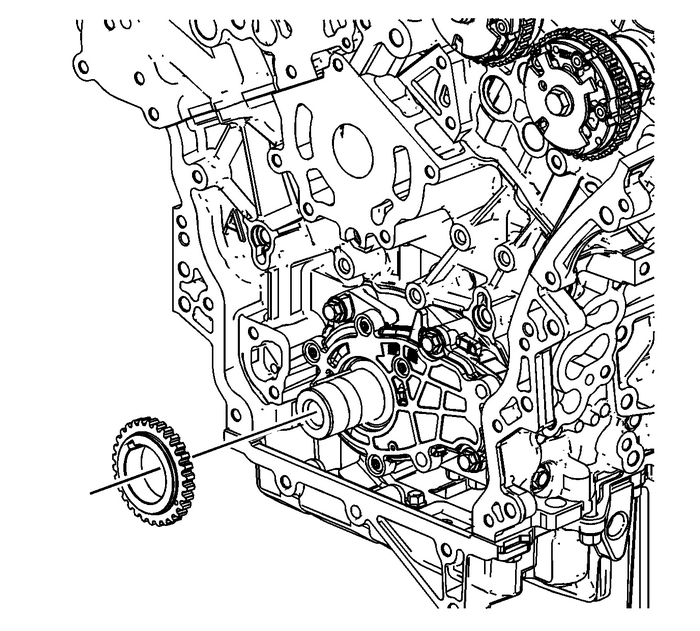

Remove the crankshaft sprocket from the nose of thecrankshaft.
