Driver or Passenger Seat Head Restraint Replacement Seats

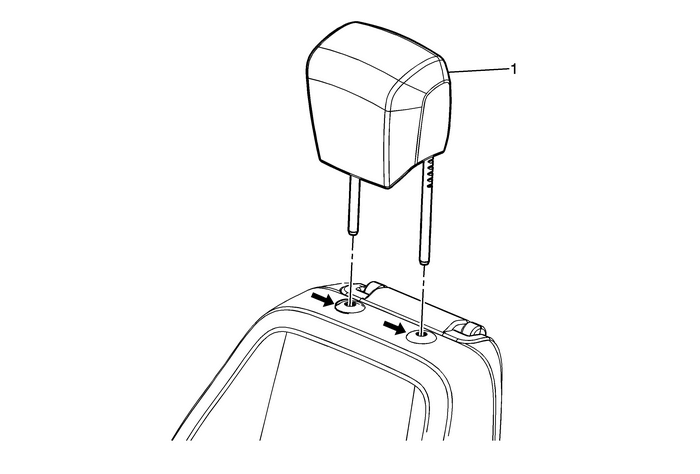

Driver or Passenger Seat Head Restraint Replacement

Callout

Component Name

Driver or Passenger Seat Head Restraint

ProcedureLower the seat back rearward to gain space between the headrestraint and the roof.Raise the headrest to the full upward position.Depress the large button on the head restraint guide andraise the head restraint to the full up position.Depress the smaller button on the opposite head restraintguide and pull upward to remove from the seat.

Driver or Passenger Seat Head Restraint Guide Replacement Seats

Driver or Passenger Seat Head Restraint Guide ReplacementCalloutComponent NamePreliminary ProcedureRemove the front seat head restraint. Refer toDriver or Passenger Seat Head Restraint Replacement.1Fr ...

Driver or Passenger Seat Inner Recliner Finish Cover Replacement Seats

Driver or Passenger Seat Inner Recliner Finish Cover ReplacementCalloutComponent Name1Driver or Passenger Seat Inner Recliner Finish CoverRetainerCaution:Refer toFastener Caution.Tighten5-Y(44-lb-in)2 ...
