Chevrolet Equinox Owners Manual: Engine Compartment Fuse Block

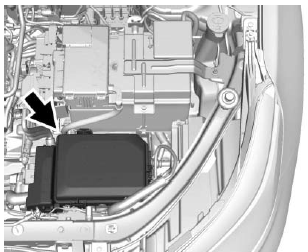

To remove the fuse block cover, squeeze the clips on the cover and lift it straight up. See Engine Compartment Overview.
| Caution Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component. |

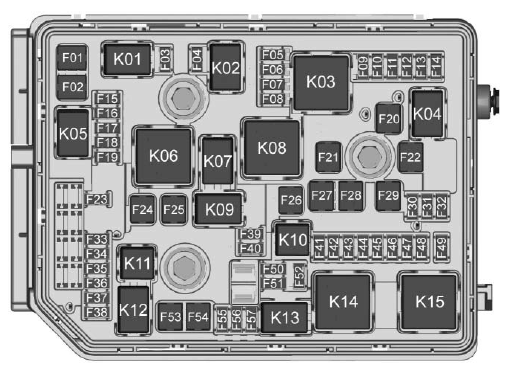

The vehicle may not be equipped with all of the fuses, relays, and features shown.
|
Fuses |
Usage |
| F01 | Starter 1 |
| F02 | Starter 2 |
| F03 | Lambda sensor 1 |
| F04 | Engine control module |
| F05 | Flex fuel sensor |
| F06 | Transmission control module |
| F07 |
- |
| F08 | Engine control module |
| F09 | Air conditioning clutch |
| F10 | Canister vent |
| F11 | Fuel system |
| F12 | Front heated seats |
| F13 | Afterboil pump |
| F14 |
- |
| F15 | Lambda sensor 2 |
| F16 | Fuel injectors - o |
| F17 | Fuel injectors - even |
| F18 | -/Selective catalytic reduction module (diesel only) |
| F19 | -/NOx soot sensor (diesel only) |
| F20 | DC DC converter 2 |
| F21 | Shift control |
| F22 | Antilock brake pump |
| F23 | Front washer |
| F24 |
- |
| F25 | -/Diesel fuel heater (diesel only) |
| F26 |
- |
| F27 | Antilock brake VAL |
| F28 | LD trailer |
| F29 | Rear window defogger |
| F30 | Mirror defroster |
| F31 |
- |
| F32 | Variable functions |
| F33 |
- |
| F34 | Horn |
| F35 | Vacuum pump |
| F36 | Right high-beam headlamp |
| F37 | Left high-beam headlamp |
| F38 | Automatic headlamp leveling |
| F39 | Fog lamps |
| F40 |
- |
| F41 | Transmission range control module |
| F42 | Motorized headlamp |
| F43 | Fuel pump |
| F44 | Interior rearview mirror |
| F45 | Canister vent solenoid |
| F46 | Driver side ventilated seat |
| F47 | Steering column lock assembly |
| F48 | Rear wiper |
| F49 |
- |
| F50 | Heated steering wheel |
| F51 | Right headlamp |
| F52 | Engine control module/ Transmission control module |
| F53 |
- |
| F54 | Front wiper |
| F55 | Front wiper speed/ Control |
| F56 |
- |
| F57 | Left headlamp |
|
Relays |
Usage |
| K01 | Starter solenoid |
| K02 | Air conditioning control |
| K03 | Engine control module |
| K04 | Wiper control |
| K05 | Starter solenoid |
| K06 | -/Fuel heater (diesel only) |
| K07 | - |
| K08 | - |
| K09 | Wiper speed |
| K10 | - |
| K11 | - |
| K12 | High-beam headlamps |
| K13 | Headlamps/Daytime running lamps |
| K14 | Run/Crank |
| K15 | Rear window defogger |
| *K16 | Horn |
| *K17 | Selective catalytic reduction |
| *K18 | Fog lamps |
| *K19 | Coolant pump |
| *K20 |
- |
| *K21 | Rear washer |
| *K22 | Front washer |
| *K23 | Wiper control |
* PCB relays are not serviceable.
Fuses and Circuit Breakers
The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit
breakers. This greatly reduces the
chance of damage caused by
electrical problems.
...
Instrument Panel Fuse Block
The instrument panel fuse block is
under the instrument panel on the
driver side.
To access the fuses, press and
release the latch near the top center
square.
Apply pressure to the two r ...
