Chevrolet Equinox Service Manual: Engine Identification

Chevrolet Equinox Service Manual / Powertrain / Engine / Engine Identification

Vehicle Identification Number

The Vehicle Identification Number (VIN) Derivative is located in two places on theengine and is a nine digit number stamped or laser etched onto the block at the vehicleassembly plant. If reading the identification number the following information canbe obtained:

The first digit identifies the vehicle division.The second digit is the model year.The third digit identifies the assembly plant.The fourth through ninth digits are the last six digits of the Vehicle IdentificationNumber (VIN).

Engine Identification

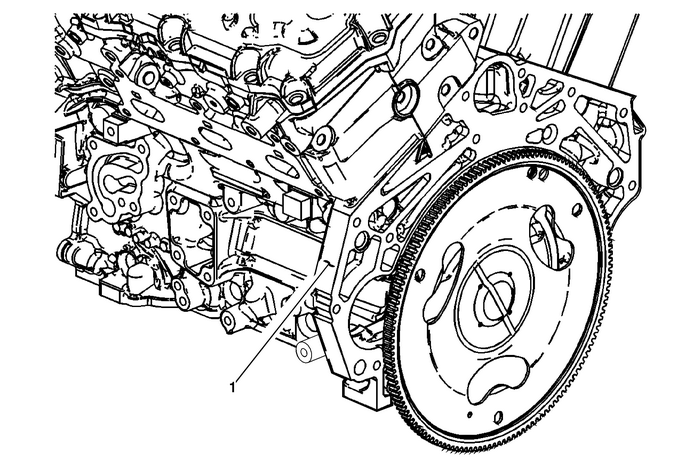

The engine block is marked with the VIN on a pad area on the left rear side-(1).

Engine Identification

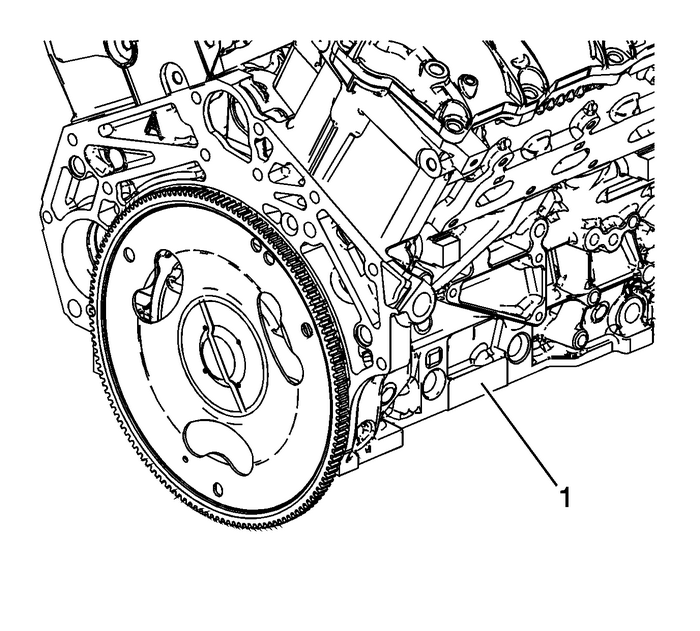

The engine block is marked with the VIN on a pad area on the center lower right side-(1).

Engine Traceability Label

The engine traceability label is located in two places on the engine and consistsof the broadcast code, bar code and sequence number. This label is used in engineand vehicle assembly plants and is not intended to be permanent. If it is missingrefer back to the engine block VIN pad for the permanent ID.

Engine Identification

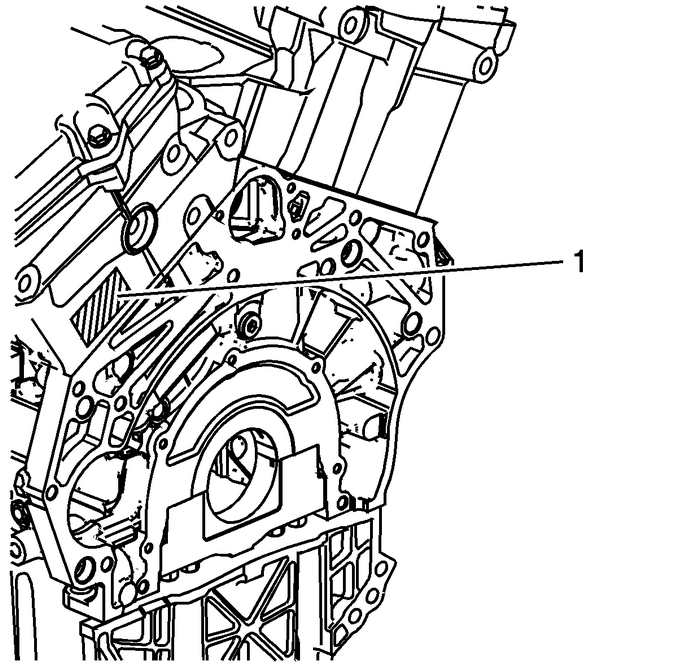

One engine traceability label-(1) is located on the left rear side of the engine block.This label is used in engine and vehicle assembly plants and is not intended to bepermanent. If it is missing refer back to the engine block VIN pad for the permanentID.

Engine Identification

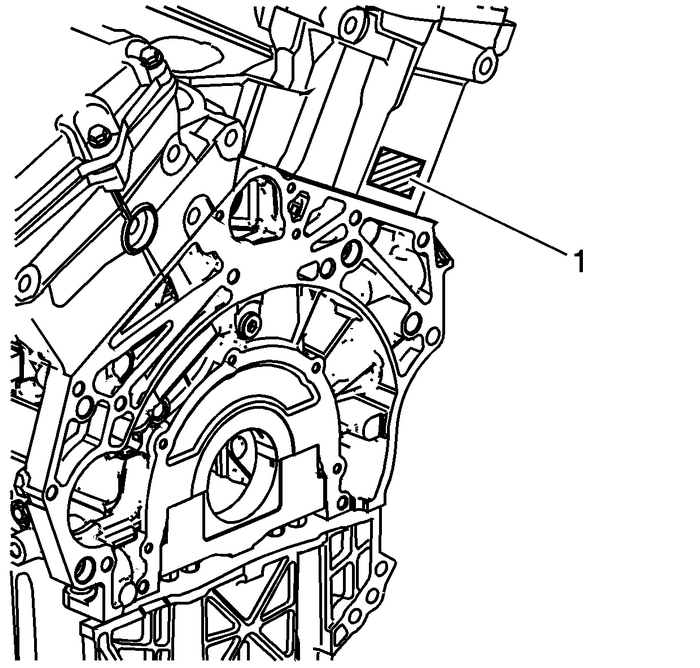

Another engine traceability label-(1) is located on the rear of the left cylinderhead. This label is used in engine and vehicle assembly plants and is not intendedto be permanent. If it is missing refer back to the engine block VIN pad for the permanentID.

Engine Verification Label

The engine verification label is located in two places on the engine and consistsof the broadcast code and bar code. This label is used in engine and vehicle assemblyplants and is not intended to be permanent. If it is missing refer back to the engineblock VIN pad for the permanent ID.

Engine Identification

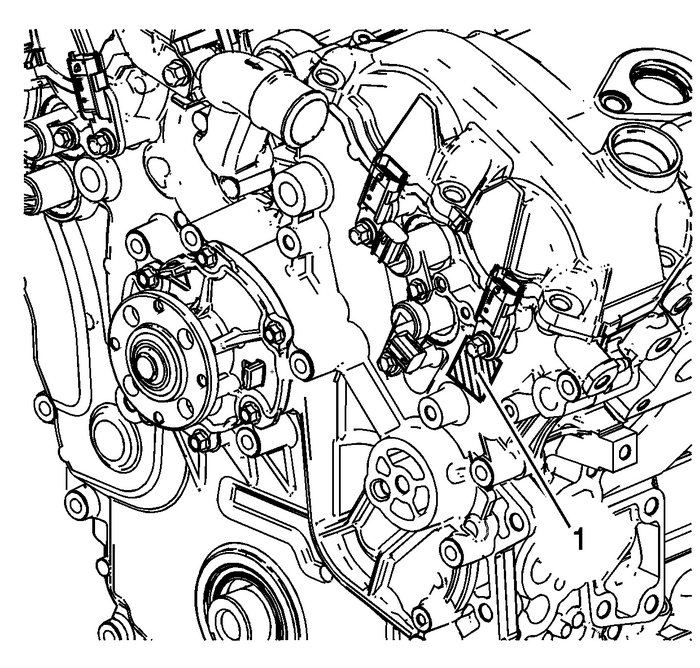

One engine verification label-(1) is located on the left side of the engine frontcover below the exhaust camshaft position sensor. This label is used in engine andvehicle assembly plants and is not intended to be permanent. If it is missing referback to the engine block VIN pad for the permanent ID.

Engine Identification

Another engine verification label-(1) is located on the rear of the right cylinderhead. This label is used in engine and vehicle assembly plants and is not intendedto be permanent. If it is missing refer back to the engine block VIN pad for the permanentID.
