Special ToolsJ-2619–01Slide HammerJ-44467Output Shaft Assembly Remover andInstallerRemoval ProcedureRaise and support the vehicle. Refer toLifting and Jacking the VehicleRemove the wheel drive shaft assembly. Refer toFront Wheel Drive Shaft Replacement.

Front Wheel Drive Intermediate Shaft Replacement Engine Block Cylinder Block Crankshaft

Note:Remove the retaining ring. DO NOT re-use the retaining ringdiscard. Use NEW only.

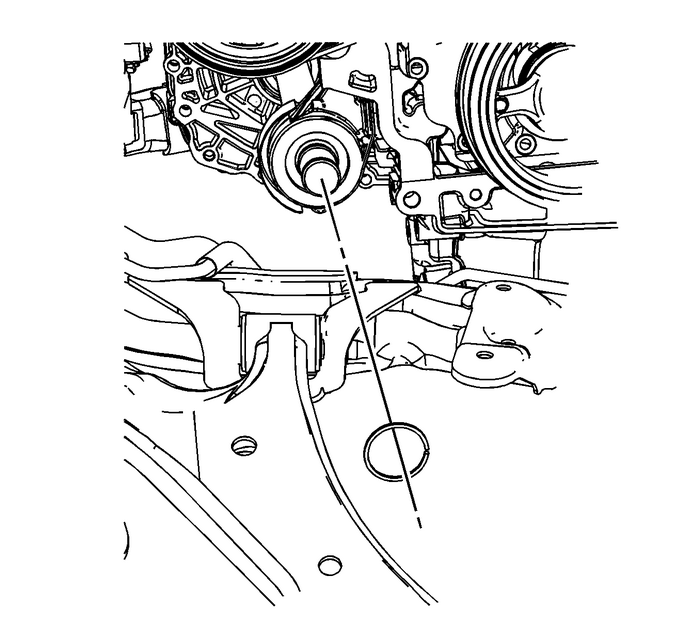

Remove the retaining clip for the wheel drive shaft.

Front Wheel Drive Intermediate Shaft Replacement Engine Block Cylinder Block Crankshaft

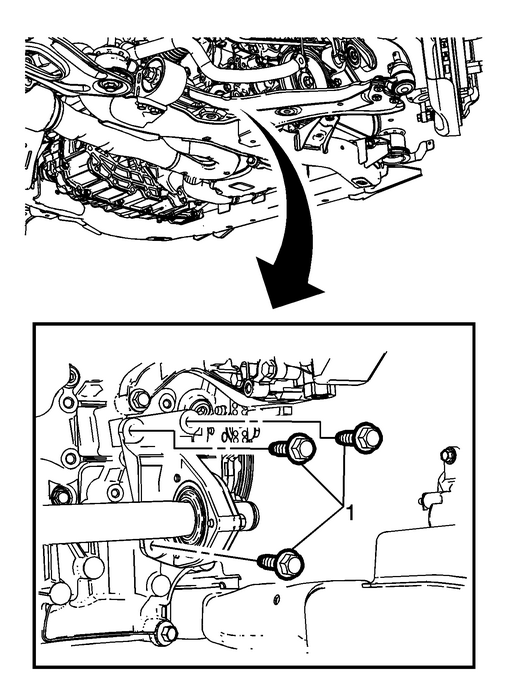

Remove the mounting bolts-(1)-for theintermediate shaft and support bracket.

Front Wheel Drive Intermediate Shaft Replacement Engine Block Cylinder Block Crankshaft

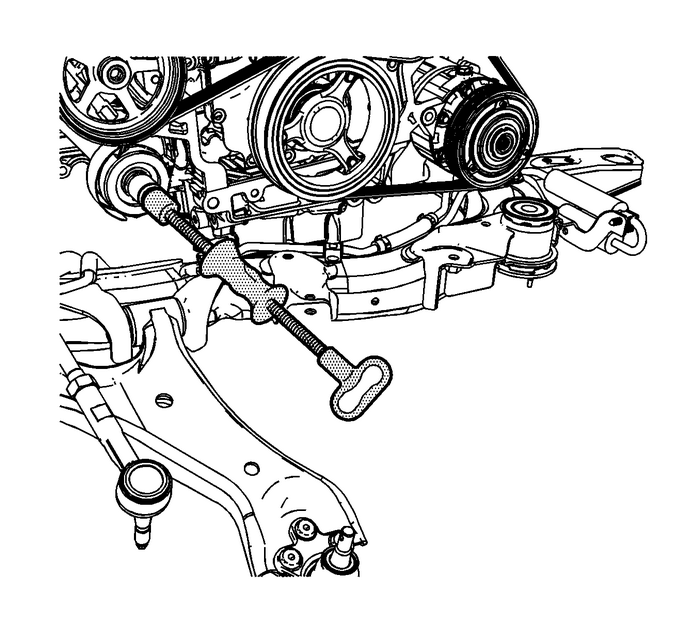

Using theJ-2619–01hammerand theJ-44467remover and installer, remove the wheel drive shaft from thetransmission.

Front Wheel Drive Intermediate Shaft Replacement Engine Block Cylinder Block Crankshaft

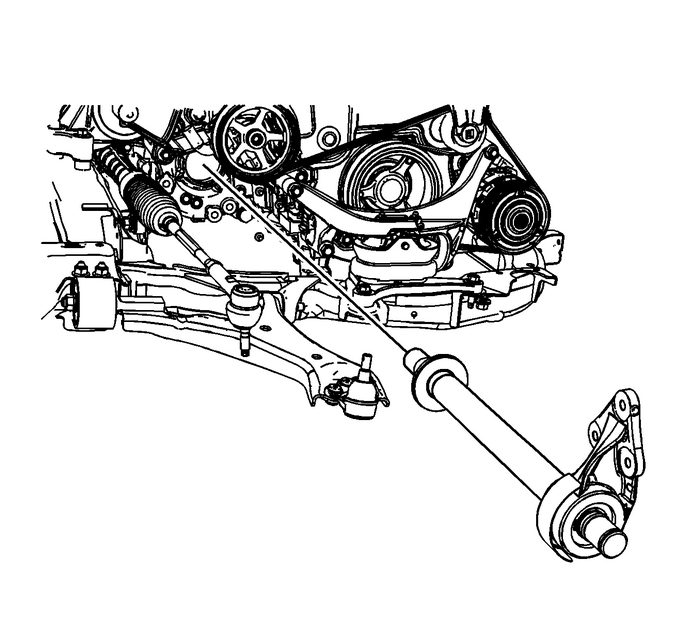

Remove the wheel drive shaft from the vehicle.Installation Procedure

Front Wheel Drive Intermediate Shaft Replacement Engine Block Cylinder Block Crankshaft

Note:Ensure that the intermediate shaft is properly seated.

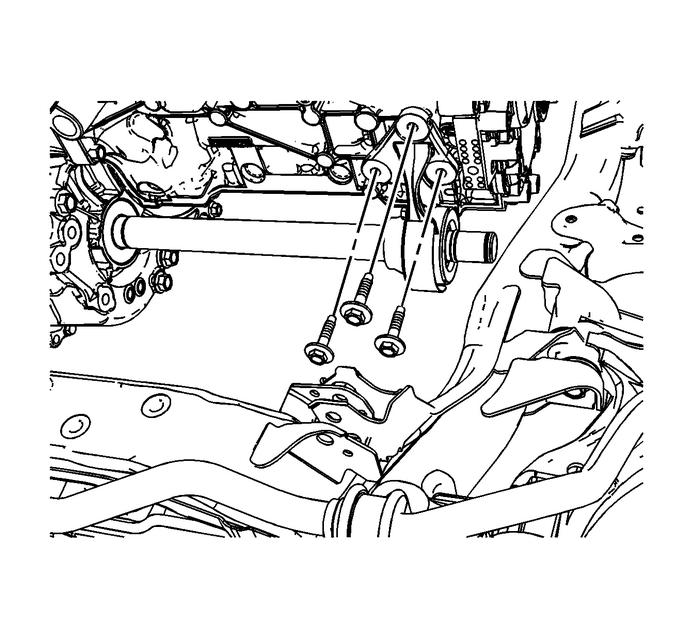

Install the intermediate shaft-(1)- inthe vehicle.

Front Wheel Drive Intermediate Shaft Replacement Engine Block Cylinder Block Crankshaft

Caution:Refer toFastener Caution.

Install the intermediate shaft mounting bracket and tightento35-Y(26-lb-ft)..

Front Wheel Drive Intermediate Shaft Replacement Engine Block Cylinder Block Crankshaft

Install the NEW intermediate shaft retaining.Install the wheel drive shaft assembly. Refer toFront Wheel Drive Shaft Replacement.Remove the support and lower the vehicle.
