Primary Timing Chain Guide Installation - Lower Valvetrain Valvetrain Timing Timing Belt/Chain

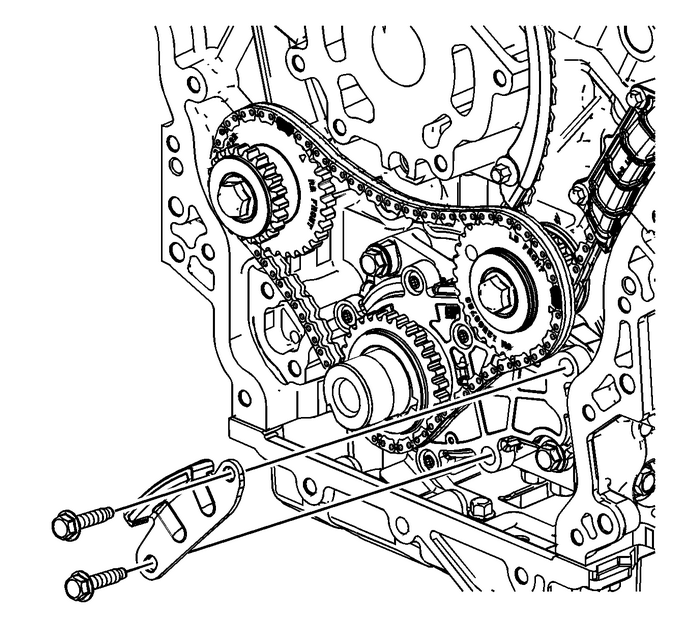

Position the primary camshaft drive chain lower guide to theoil pump.

Caution:Refer toFastener Caution.

Install the primary camshaft drive chain lower guide boltsand tighten to25-Y(18-lb-ft).
