Primary Timing Chain Guide Installation - Upper Valvetrain Valvetrain Timing Timing Belt/Chain

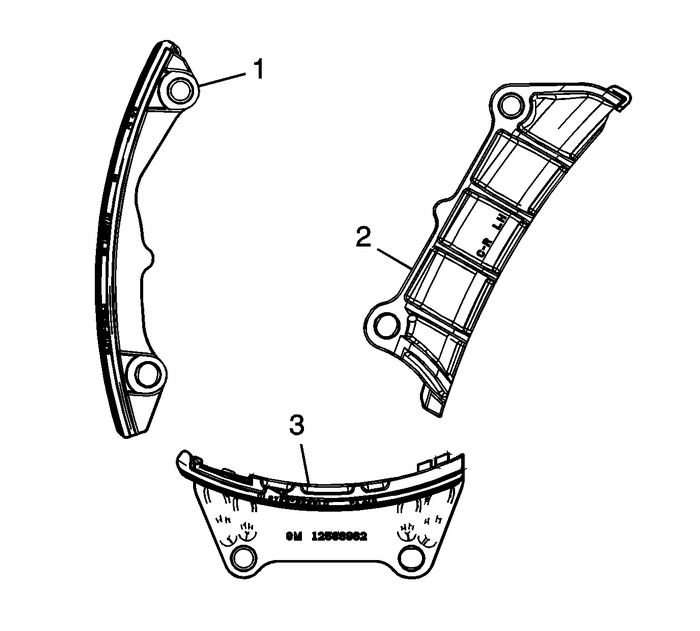

Ensure the upper primary camshaft drive chainguide-(3) is being installed.

Primary Timing Chain Guide Installation - Upper Valvetrain Valvetrain Timing Timing Belt/Chain

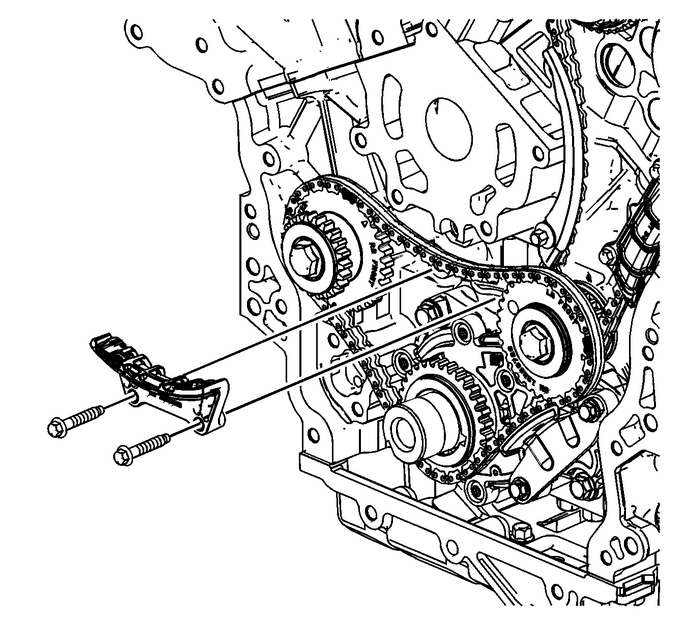

Install the upper primary camshaft drive chain guides.

Caution:Refer toFastener Caution.

Install the upper primary camshaft drive chain guide boltsand tighten to25-Y(18-lb-ft).
