Rear End Trim Finish Panel Replacement Trim Panels/Welts

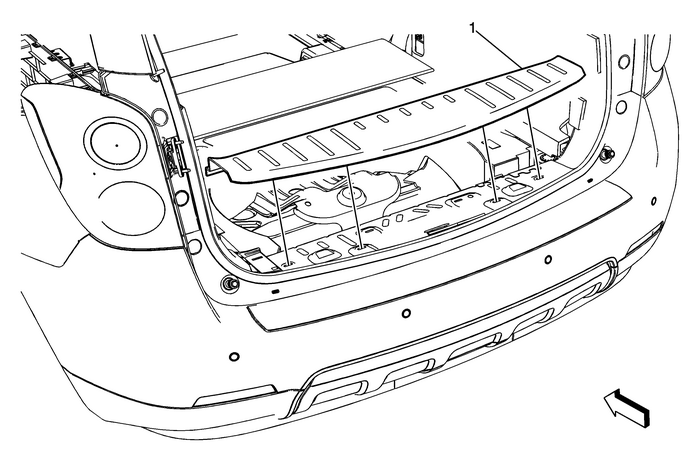

Rear End Trim Finish Panel Replacement

Callout

Component Name

1

Rear End Trim Finish Panel Assembly

Procedure

Grasp and gently pull up on the rear end trim finish panel inorder to release the integral retaining clips.

Quarter Outer Panel Pressure Relief Valve Replacement Trim Panels/Welts
Quarter Outer Panel Pressure Relief Valve ReplacementCalloutComponent NamePreliminary ProceduresRemove the rear bumper fascia. Refer toRear Bumper Fascia Replacement.Reposition any wiring to gain acce ...

Rear Side Door Accessory Switch Mount Plate Replacement Trim Panels/Welts
Rear Side Door Accessory Switch Mount Plate ReplacementCalloutComponent Name1Rear Side Door Accessory Switch Mount PlateProcedureStarting at the rear of the accessory switch mount plate ,usea small fl ...
