Rear Side Door Accessory Switch Mount Plate Replacement Trim Panels/Welts

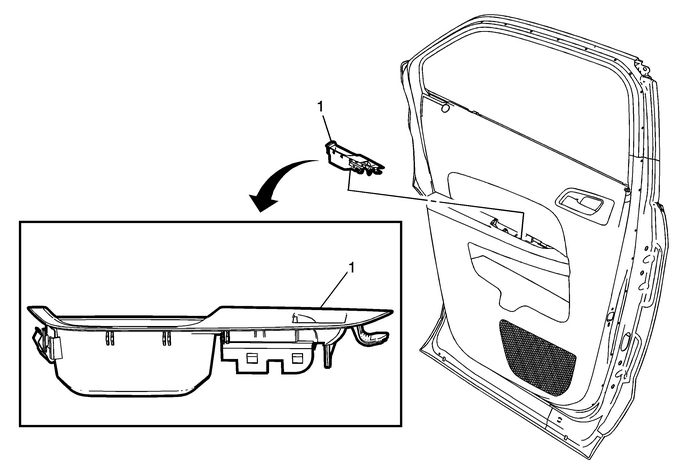

Rear Side Door Accessory Switch Mount Plate Replacement

Callout

Component Name

Rear Side Door Accessory Switch Mount Plate

ProcedureStarting at the rear of the accessory switch mount plate ,usea small flat bladed tool to release the accessory switch mountplate from the door trim.Disconnect the electrical connector.When replacing the accessory switch mount plate, transfer allnecessary components.

Rear End Trim Finish Panel Replacement Trim Panels/Welts

Rear End Trim Finish Panel ReplacementCalloutComponent Name1Rear End Trim Finish Panel AssemblyProcedureGrasp and gently pull up on the rear end trim finish panel inorder to release the integral retai ...

Rear Side Door Garnish Molding Replacement Trim Panels/Welts

Rear Side Door Garnish Molding ReplacementCalloutComponent NamePreliminary ProcedureRemove the rear side door trim panel. Refer toRear Side Door Trim Panel Replacement.1Rear Side Door Garnish Molding ...
