Rear Side Door Garnish Molding Replacement Trim Panels/Welts

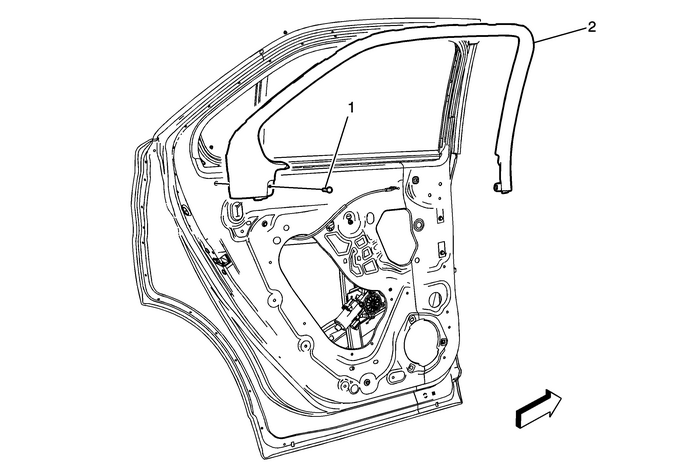

Rear Side Door Garnish Molding Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear side door trim panel. Refer toRear Side Door Trim Panel Replacement.

1

Rear Side Door Garnish Molding Retainer

Procedure

Use a door trim panel removal tool or equivalent to aid inthe removal of the retainers.

2

Rear Side Door Garnish Molding

Procedure

Pull outward starting at the front and moving slowly rearwardto remove the molding.
