Chevrolet Equinox Service Manual: Secondary Timing Chain Guide Removal - Left Side Valvetrain Valvetrain Timing Timing Belt/Chain

Chevrolet Equinox Service Manual / Powertrain / Engine / Secondary Timing Chain Guide Removal - Left Side Valvetrain Valvetrain Timing Timing Belt/Chain

Secondary Timing Chain Guide Removal - Left Side Valvetrain Valvetrain Timing Timing Belt/Chain

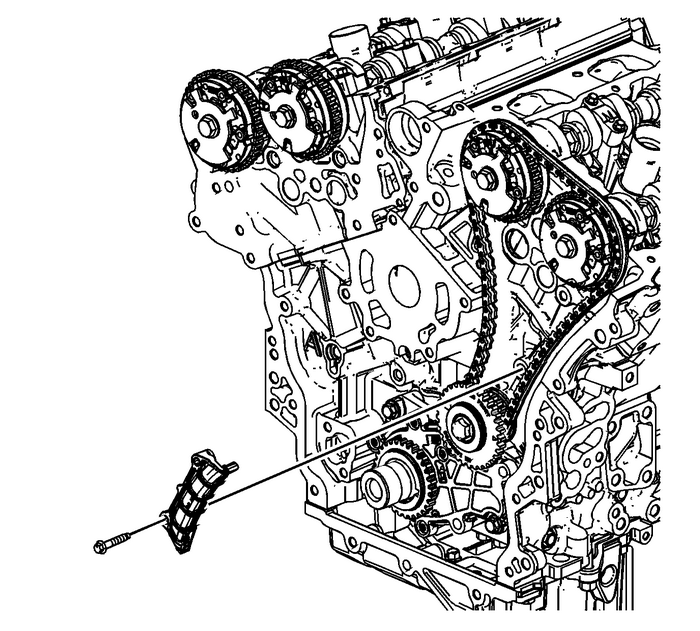

Remove the left secondary camshaft drive chain guidebolts.Remove the left secondary camshaft drive chain guide.

Secondary Camshaft Intermediate Drive Chain Removal - Left Side Valvetrain Camshaft
Remove the left secondary camshaft drive chain from the leftcamshaft position actuators and the left camshaft intermediatedrive chain idler sprocket. ...

Secondary Camshaft Drive Chain Shoe Removal - Left Side Valvetrain Camshaft
Remove the left secondary camshaft drive chain shoebolt.Remove the left secondary camshaft drive chain shoe. ...

Other materials:

Front Wheel Drive Shaft Seal Replacement - Torque Converter Housing Side Automatic Transmission Unit
Front Wheel Drive Shaft Seal Replacement - Torque Converter Housing SideCalloutComponent Name1Torque Converter-–-Front Wheel Drive Shaft Oil Seal AssemblyNote:Use the open side of DT-46629-A seal installer to avoid seal lip damage and to install the seal to the proper depth.Special ToolsDT-23129 U ...
