Chevrolet Equinox Service Manual: Special Tools

Chevrolet Equinox Service Manual / Body / "Wipers, Washers" / Special Tools

Illustration

Tool Number/ Description

Special Tools

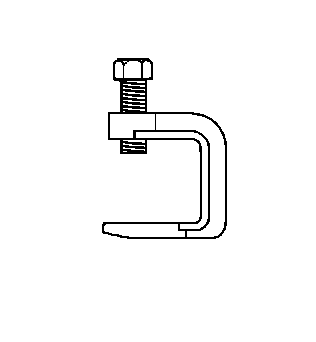

J-39637

Wiper Arm Puller
