Chevrolet Equinox Service Manual: Special Tools Parking Brake

Chevrolet Equinox Service Manual / Chassis / Brakes / Special Tools Parking Brake

Illustration

Tool Number/ Description

Special Tools Parking Brake

J-21177-A

Drum-to-Brake Shoe Clearance Gauge

Special Tools Parking Brake

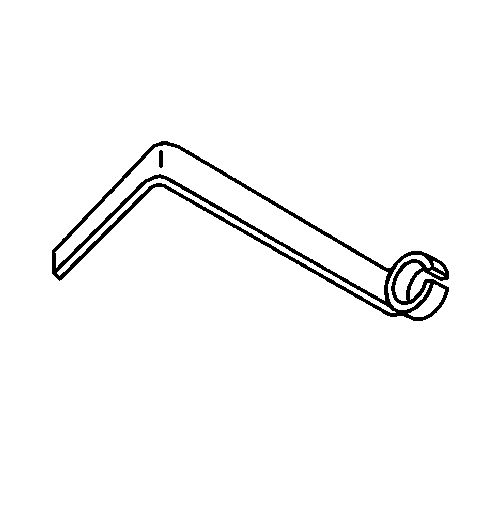

J-37043

Parking Brake Cable Release Tool

Special Tools Parking Brake

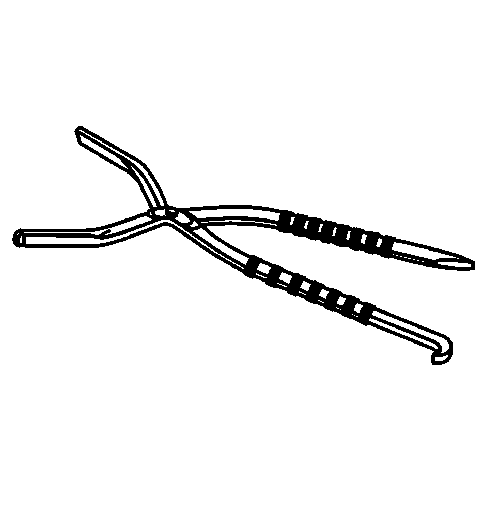

J-38400

Brake Shoe Spanner and Spring Remover
