Chevrolet Equinox Service Manual: Special Tools Wheels

Chevrolet Equinox Service Manual / Chassis / Wheels/Tires / Special Tools Wheels

Illustration

Tool Number/ Description

Special Tools Wheels

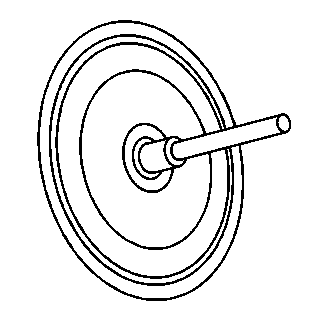

CH-41013

J-41013

Rotor Resurfacing kit

Not used in Europe

Special Tools Wheels

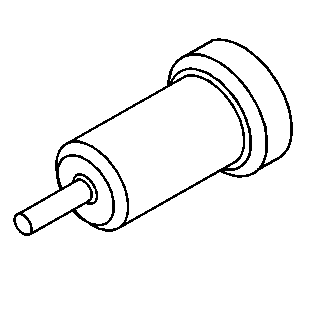

CH-42450–A

J-42450–A

Wheel Hub Resurfacing Kit

Not used in Europe
