| Preliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the tire and wheel assembly. Refer toTire and Wheel Removal and Installation. | |

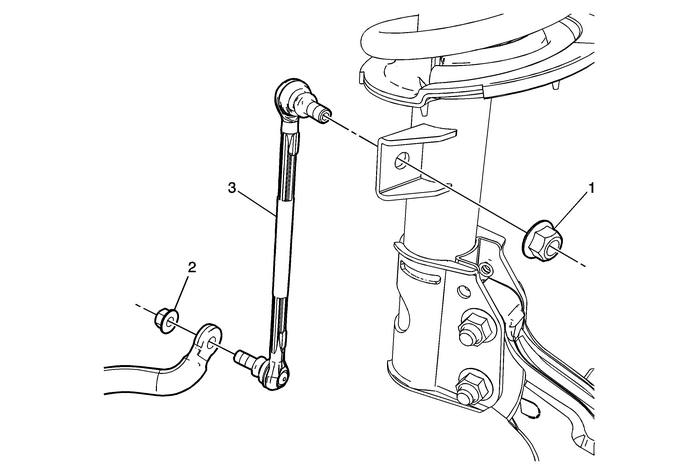

1 | Upper Stabilizer Shaft Link Nut Caution:Refer toFastener Caution. Note:Do not allow the stabilizer shaft link ball stud to rotate while removing or installingthe stabilizer shaft link nut. Tighten85-Y (63-lb-ft) |
2 | Lower Stabilizer Shaft Link Nut Note:Do not allow the stabilizer shaft link ball stud to rotate while removing or installingthe stabilizer shaft link nut. Tighten75-Y (55-lb-ft) |
3 | Stabilizer Shaft Link |
Stabilizer Shaft Link Replacement Sway Bar Assembly
Stabilizer Shaft Replacement Sway Bar AssemblyTire and Wheel Runout Specifications
Tire and Wheel Runout SpecificationsApplicationSpecificationMetricEnglishTire and Wheel Assembly– Lateral and RadialOff-Vehicle1.27-mm0.050-inOn-Vehicle1.52-mm0.060-inWheel, AluminumLateral0.762-mm0.030-inRadial0.762-mm0.030-inWheel, SteelLateral1.143-mm0.045-inRadial1.015-mm0.040-inWheel Hub/Axle ...
