Theft Deterrent Module Replacement Immobilizer

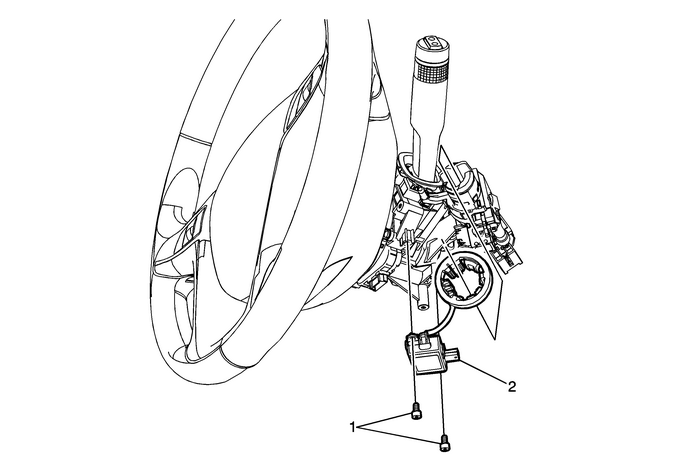

Theft Deterrent Module Replacement

Callout

Component Name

Preliminary Procedure

Remove the steering column shrouds. Refer toSteering Column Shroud Replacement.

Theft Deterrent Module Bolt/Screw (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2-Y(18-lb-in)

Theft Deterrent Module

ProcedureDisconnect the electrical connector.Refer toControl Module Referencesfor programming and set upprocedures.

Front Side Door Lock Cylinder Coding Locks Mechanical Locks

The door lock cylinder uses 6 of the 8-cutpositions, 3 through 8. The tumbler positions are staggered fromside to side, 3 on one side and 3 on the other, are notself-retaining, and are not snap in.Not ...

Lock Cylinder Coding - Ignition Locks Mechanical Locks

The ignition lock cylinder uses 8-key cutpositions, 1–8. The ignition cylindertumblers-(3) are located on alternate sides of thecylinder-(5). They are not snap-in and are notself-retaining. It follo ...
