Chevrolet Equinox Service Manual: Crankshaft Front Oil Seal Installation Engine Block Seals and Gaskets

Chevrolet Equinox Service Manual / Powertrain / Engine / Crankshaft Front Oil Seal Installation Engine Block Seals and Gaskets

Special Tools

EN-35268-ACamshaft/Front Main Seal Installer

For equivalent regional tools, refer toSpecial Tools.

Crankshaft Front Oil Seal Installation Engine Block Seals and Gaskets

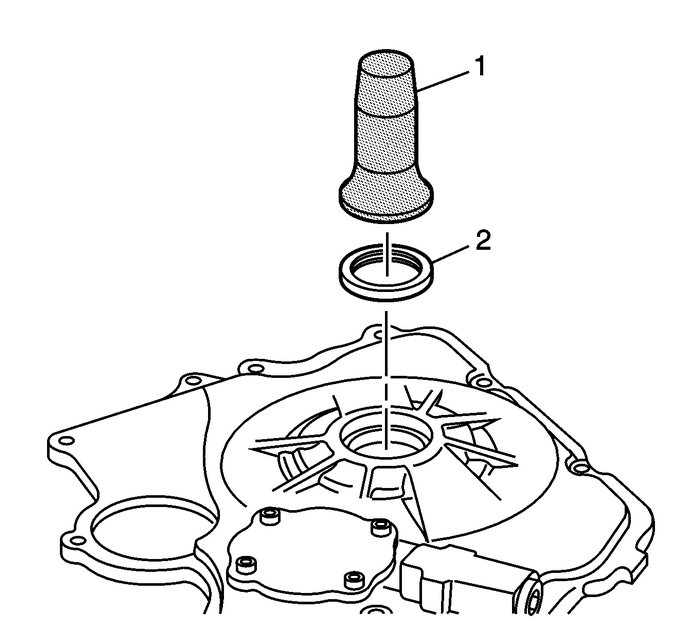

Install the seal-(2) into the front cover usingtheEN-35268-Ainstaller-(1).Ensure that the engine front cover is properly supported wheninstalling the seal.
