Drive Belt Replacement Pulleys and Belts Accessory Drive Belts

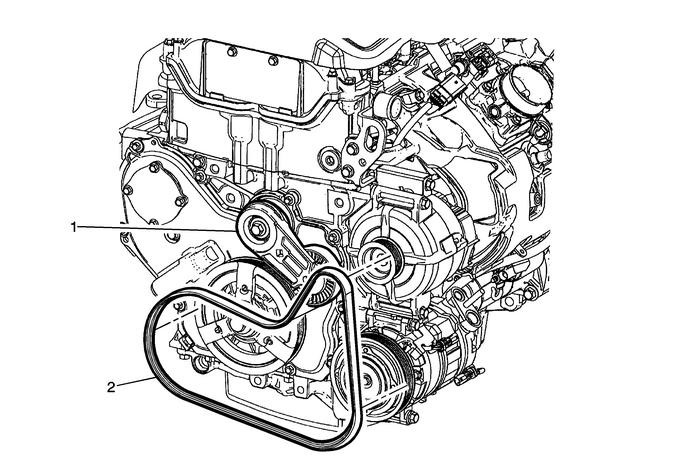

Drive Belt Replacement

Callout

Component Name

Preliminary Procedure

Remove the right engine splash shield. Refer toEngine Splash Shield Replacement - Right Side.

Drive Belt

ProcedureUse the proper tool to rotate the drive belttensioner.Remove the drive belt from the pulleys and tensioner.

Drive Belt Tensioner

ProcedureClean and inspect the drive belt surfaces of all thepulleys.Inspect the drive belt for correct alignment.

Intake Manifold Removal Intake and Forced Induction Intake Manifold

Disconnect and remove the positive crankcaseventilation-(PCV) tube-(1) from the intakemanifold and right camshaft cover.Remove the evaporative-(EVAP) hose from the intakemanifold and EVAP solenoid.Rem ...

Drive Belt Replacement Pulleys and Belts Accessory Drive Belts

Drive Belt ReplacementCalloutComponent NamePreliminary ProceduresRemove the engine mount bracket. Refer toEngine Mount Bracket Replacement - Right Side1Drive BeltProcedureRotate the drive belt tension ...
