Instrument Panel Airbag Arming Status Display Replacement Secondary Air Bag Modules

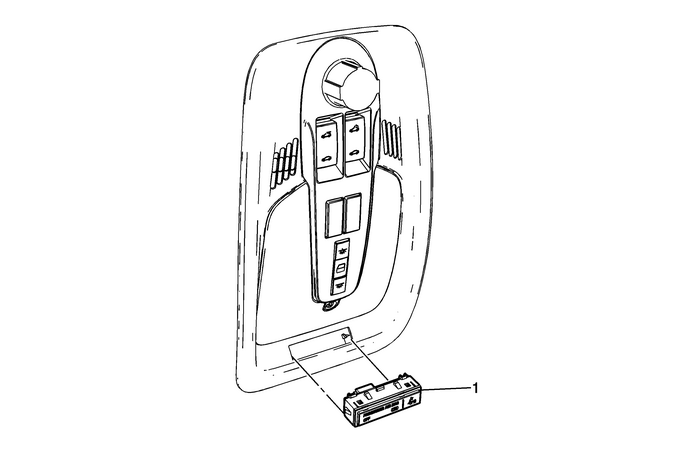

Instrument Panel Airbag Arming Status Display Replacement

Callout

Component Name

Preliminary Procedure

Remove the roof console. Refer toRoof Console Replacement.

Inflatable Restraint Instrument Panel Module Indicator

Airbag Side Impact Sensor Replacement - Rear Side Door Restraints Control Crash Sensors

Inflatable Restraint Side Impact Sensor Replacement - Rear Side DoorCalloutComponent NameWarning:When performing service on or near the SIR components or theSIR wiring, the SIR system must be disabled ...

Inflatable Restraint Passenger Presence System Scan Tool Information

Passenger Presence Module Scan Tool Data ParametersParameterExpected ValueDefinition Operating Conditions: Ignition ONBase Model Part NumberVaries, 8 Digit NumberThe scan tool displays the part number ...
