Chevrolet Equinox Service Manual: Piston and Connecting Rod Disassemble Engine Block Cylinder Block Piston Assembly

Chevrolet Equinox Service Manual / Powertrain / Engine / Piston and Connecting Rod Disassemble Engine Block Cylinder Block Piston Assembly

Special Tools

EN-46745Piston Pin Retainer Remover andInstaller

For equivalent regional tools, refer toSpecial Tools.

Piston and Connecting Rod Disassemble Engine Block Cylinder Block Piston Assembly

Warning:Handle the piston carefully. Worn piston rings are sharp andmay cause bodily injury.

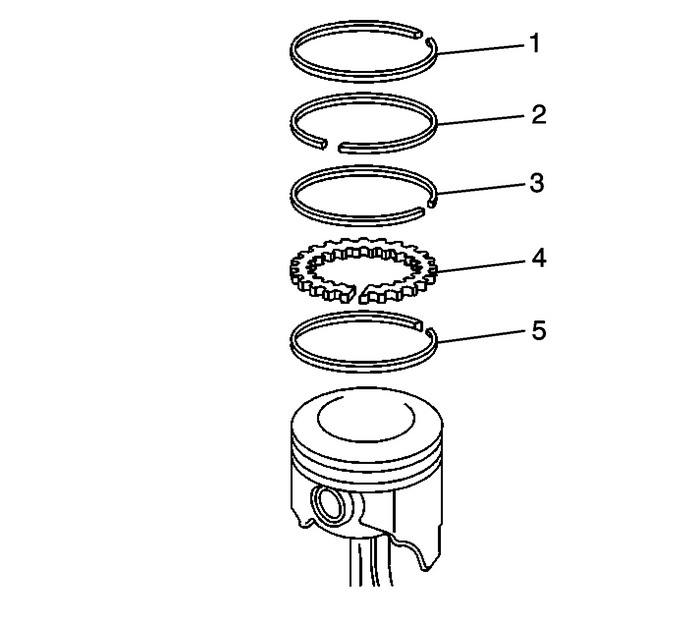

Disassemble the piston rings-(1, 2, 3, 4, 5). Usea suitable tool to expand the rings. The piston rings must not bereused.

Piston and Connecting Rod Disassemble Engine Block Cylinder Block Piston Assembly

Note:Two retainers hold the piston pins in place. No special toolsare required to remove the piston pins. Ensure that the piston pinis not damaged. Do not reuse the retainers.

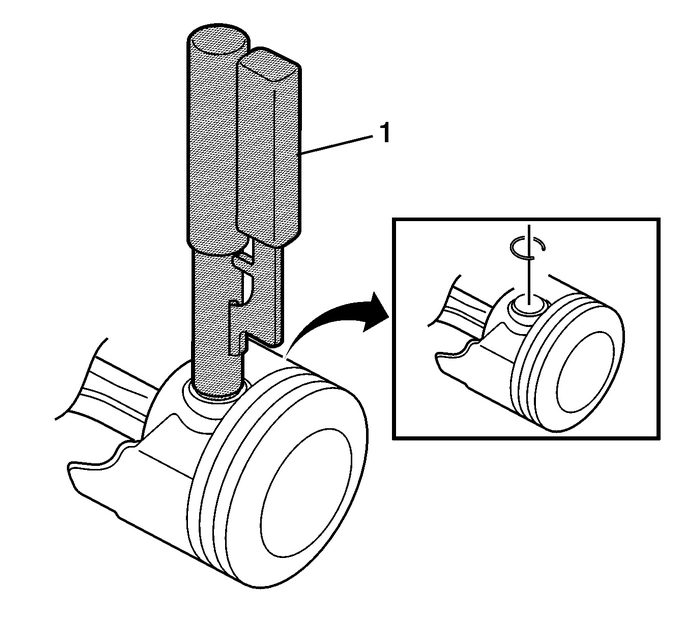

Remove the piston pin retainers using theEN-46745remover-(1).

Piston and Connecting Rod Disassemble Engine Block Cylinder Block Piston Assembly

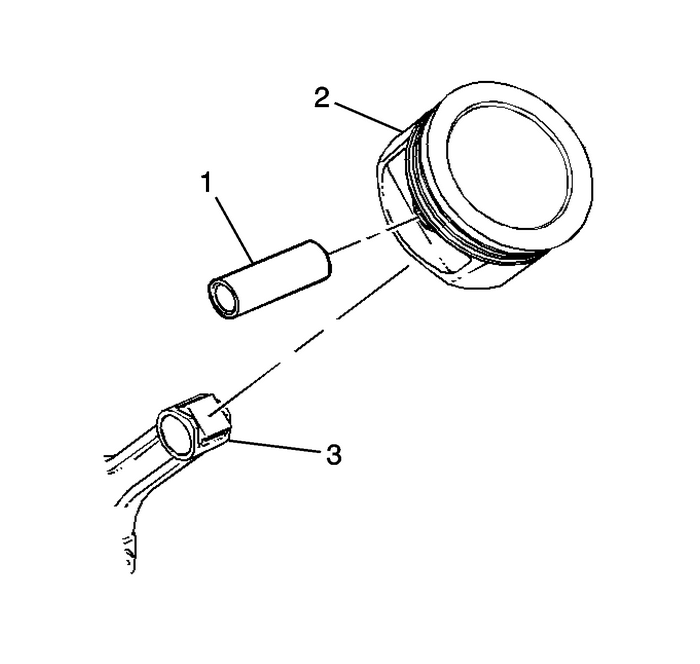

Remove the piston pin-(1) and the connectingrod-(3) from the piston-(2).

Piston and Connecting Rod Assemble Engine Block Cylinder Block Piston Assembly
Special ToolsEN-46745Piston Pin Retainer Remover andInstallerFor equivalent regional tools, refer toSpecial Tools.Note:Install the piston onto the connecting rod with the arrow ontop of the piston tow ...

Fuel Rail and Injectors Installation Fuel System Fuel Rail
Special ToolsEN-47909Injector Bore and Sleeve Cleaning KitFor equivalent regional tools, refer toSpecial Tools.Clean the fuel injector bore in the cylinder head using theEN-47909kit.Install the fuel r ...
