Special ToolsEN 38416-2Crankshaft ButtonEN 41816Crankshaft Balancer RemoverEN 46106Flywheel Holding Tool
For equivalent regional tools, refer toSpecial Tools.

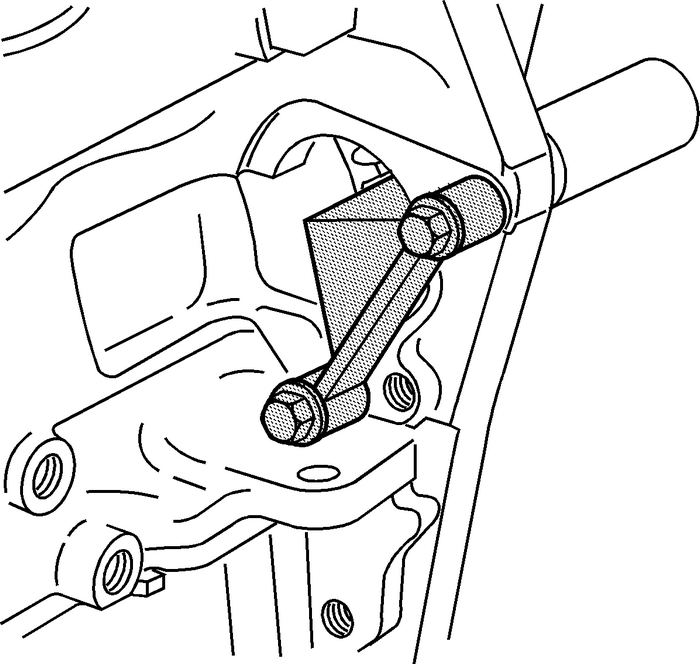

Install theEN 46106toolthrough the starter mounting hole.

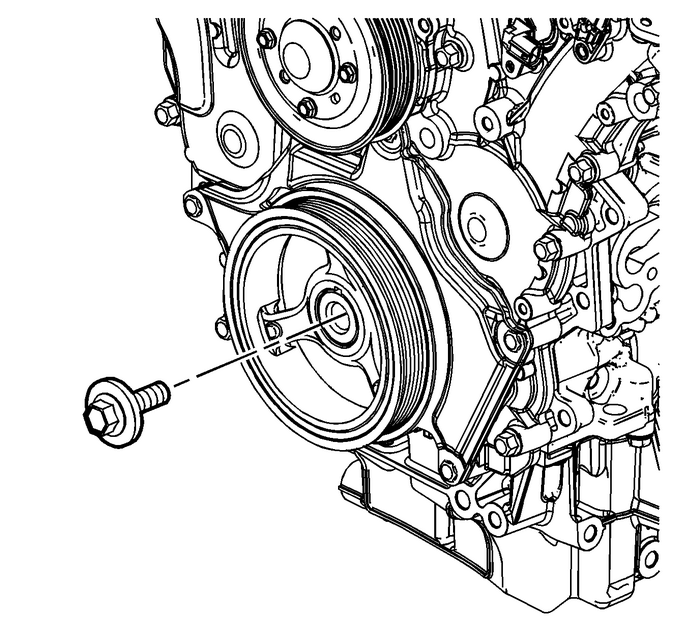

Remove and discard the crankshaft balancer bolt.

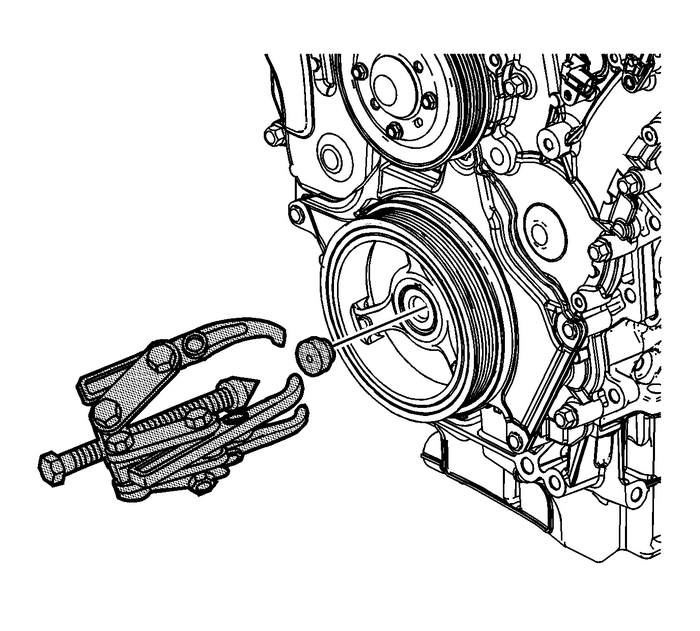

Install theEN 38416-2buttonin the nose of the crankshaft.Install theEN 41816removerin order to remove the crankshaft balancer.Tighten the center bolt of theEN 41816removerin order to pull the crankshaft balancer off of the crankshaft.Remove theEN 41816removerfrom the crankshaft balancer.
Remove theEN 46106tool.
Primary Timing Chain Guide Replacement - Lower Valvetrain Valvetrain Timing Timing Belt/Chain
Removal ProcedureRemove the primary camshaft drive chain tensioner. Refer toPrimary Camshaft Intermediate Drive Chain Tensioner Replacement.Remove the primary camshaft drive chain lower guidebolts.Remove the primary camshaft drive chain lower guide.Installation ProcedurePosition the primary camshaft ...
